The Eternal Processor: How a Community-Driven Project is Resurrecting the Legendary Zilog Z80

For nearly half a century, the Zilog Z80 has been the invisible heartbeat of the digital age. From the chaotic, neon-lit arcades of the late 1970s to the classrooms where millions first learned to code on graphing calculators, this 8-bit powerhouse defined an era of computing. However, as of June 2024, the sun has officially set on the official production of this historic silicon. While Zilog—now a subsidiary of Littelfuse—has ceased accepting orders for the Z84C00 family, the Z80 is far from dead. In a remarkable display of open-source perseverance, a dedicated community is currently working to ensure that this legendary architecture remains alive, functional, and drop-in compatible for decades to come.

A Half-Century of Silicon Dominance: The Main Facts

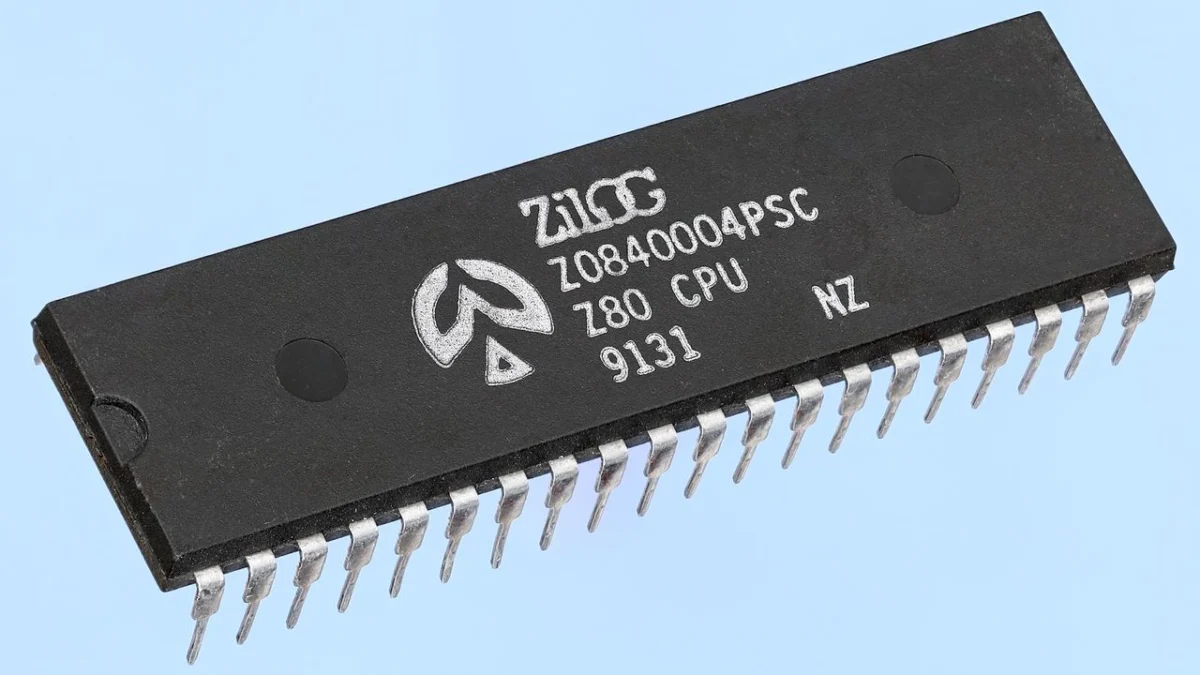

The Zilog Z80 is not merely a processor; it is a cultural artifact. Introduced in July 1976, it was designed by Federico Faggin, a former lead designer of the Intel 8080. By building on the 8080’s architecture, Zilog ensured that the Z80 was binary-compatible with the existing CP/M software ecosystem, a strategic masterstroke that allowed it to rapidly capture market share.

At its debut, the Z80 was a marvel of engineering. It packed approximately 8,500 transistors onto a 4μm process, typically clocking in at 2.5 MHz. Beyond its raw processing power, it featured an innovative on-die DRAM refresh counter. This seemingly small feature significantly reduced the number of support chips required to build a functional computer, lowering the barrier to entry for home computer manufacturers and hobbyists alike.

With development costs reaching $400,000—a significant sum backed by a $500,000 investment from Exxon—the Z80 was a high-stakes gamble that paid off exponentially. It became the brains behind iconic machines like the ZX Spectrum, the TRS-80, and the MSX series. It powered the Sega Master System and became the standard for arcade classics, most notably the Pac-Man cabinet. Even as personal computing shifted toward 16-bit and 32-bit architectures, the Z80 found a second life in embedded systems, motor controllers, and, famously, the Texas Instruments TI-84 Plus series of graphing calculators.

A Chronology of the Z80

The trajectory of the Z80 is a masterclass in longevity. To understand why its retirement is so significant, one must look at the timeline of its influence:

• 1976: The Z80 is launched, offering a more efficient, higher-performance alternative to the 8080.
• 1980s: The "Golden Age" of 8-bit computing. The Z80 is ubiquitous in home PCs and early video game consoles.
• 1990s: The chip transitions into the embedded market, finding homes in everything from microwave ovens to industrial control units.
• 2001: Zilog introduces the eZ80, a pipelined, high-performance successor architecture that maintains compatibility with the original Z80.
• April 15, 2024: Zilog issues a formal End-of-Life (EOL) notice for the Z84C00 family, citing the discontinuation of wafer foundry support.
• June 2024: The final "last-time-buy" orders are processed.
• Present Day: Open-source efforts, led by developers like Renaldas Zioma, move from experimental prototypes to functional, mass-manufacturable silicon clones.

Supporting Data: The Technical Resurrection

The project to save the Z80 is not a mere emulation or a "soft" implementation on an FPGA; it is a hard-silicon resurrection. Renaldas Zioma’s FOSS Z80 project began in earnest shortly after the EOL notice.

The engineering process has been rigorous. The first iteration was fabricated on SkyWater’s 130nm node through the "Tiny Tapeout 7" program, resulting in a die size of just 0.064mm². This proof-of-concept confirmed that the architecture could be successfully ported to modern fabrication processes. Subsequent iterations have been equally ambitious:

• QFN64 Version: Designed to expose all 40 pins of the original DIP package, this version was tested on the Efabless CI2406 shuttle.
• IHP 130nm Runs: Two successful test runs verified the logic in a more stable environment.
• DIP40 Targeting: The current phase utilizes GlobalFoundries’ 180nm GF180MCU node via Wafer.Space, aiming for a true "drop-in" replacement that fits the original 40-pin DIP footprint, ensuring that vintage computers can be repaired without modification.

The core of this project is based on Guy Hutchison’s TV80 Verilog implementation. Preliminary testing suggests that while the original NMOS Z80 topped out at 4 MHz, this modern CMOS implementation is capable of pushing speeds up to 50 MHz, providing a massive performance boost for legacy hardware while maintaining the instruction set that makes the Z80 so versatile.

Official Responses and Market Shifts

Zilog’s exit from the legacy 8-bit market is not entirely unexpected. In the semiconductor industry, maintaining support for decades-old process nodes is notoriously difficult and increasingly cost-prohibitive. In October of last year, a product change notification signaled that the eZ80L92 and several Z8F-series microcontrollers were also nearing the end of their lifecycle due to "little to no demand."

However, Zilog’s withdrawal from the discrete Z80 market does not mean the architecture is vanishing entirely. The pipelined eZ80 architecture, which remains a staple in TI-84 Plus CE calculators, is still supported in the broader Zilog catalog. Nonetheless, for the retro-computing community and those maintaining older industrial machinery, the loss of the original discrete Z84C00 is a blow that necessitates the type of community-funded fabrication currently underway.

Implications: Why Save a 50-Year-Old Chip?

One might ask why there is such an outcry over a 50-year-old piece of technology. The answer lies in the intersection of preservation, education, and pure technical utility.

1. Preservation of Cultural History

The Z80 is a fundamental part of the history of computing. If original hardware dies, the software—the games, the operating systems, the creative tools of the late 70s and 80s—becomes harder to run on authentic machines. The FOSS Z80 project ensures that the "authentic experience" remains accessible to future generations.

2. The Power of Simplicity

Modern computing is defined by immense complexity, with billions of transistors and opaque abstraction layers. The Z80, by contrast, is transparent. It is an excellent educational tool for students learning how computers work at the register and assembly level. A developer earlier this year demonstrated this by running a functional conversational AI on a Z80 with only 64KB of RAM—a testament to the efficiency of the architecture when paired with clever programming.

3. Industrial Stability

Many legacy industrial systems—such as those controlling power grids, automated manufacturing lines, or medical equipment—were built around the Z80. Replacing these controllers entirely is often prohibitively expensive or technically complex. A drop-in, modern-fab replacement chip provides a lifeline for businesses and organizations that rely on these "indestructible" machines.

4. The Open-Source Paradigm Shift

Perhaps the most significant implication is the demonstration of community-led manufacturing. By utilizing services like Tiny Tapeout, Efabless, and open-source design tools, small groups of enthusiasts can now perform tasks that previously required the R&D budgets of Fortune 500 companies. This represents a democratization of silicon production that could extend the life of many other legacy chips in the future.

Conclusion

The Zilog Z80 has officially retired from the professional manufacturing stage, but it has been handed a new lease on life by the very people who grew up using it. As we move into an era where "legacy" usually implies obsolescence, the FOSS Z80 project serves as a reminder that with enough passion and the right open-source tools, hardware can be truly eternal. Whether it is powering a restored ZX Spectrum, driving a custom RC2014 computer, or serving as a canvas for AI experimentation, the Z80 will continue to tick, long after its original manufacturer has moved on. The legacy of the 8-bit era is secure—not in a corporate archive, but in the hands of the community.
