The Return of Dual GPUs? How a Community Mod Offloads DLSS 5 Neural Rendering to a Secondary Graphics Card

The dream of multi-GPU gaming, once thought dead alongside NVIDIA’s SLI and AMD’s CrossFire, has received an unexpected, AI-driven resuscitation. A software developer has successfully created a custom ReShade add-on that offloads the intensive workloads of NVIDIA’s DLSS 5 Neural Rendering (DLSS NR) to a secondary, dedicated graphics card.

Dubbed the "Neural Coprocessor" mod, this development almost entirely negates the massive performance penalties typically associated with real-time AI image reconstruction. By delegating the heavy mathematical lifting of neural post-processing to a secondary GPU, the primary rendering card is freed to run games at higher native frame rates. While the project is currently in an experimental, research-focused state, it opens up a fascinating paradigm shift: a future where gamers keep their previous-generation graphics cards not as e-waste, but as dedicated neural coprocessors.

1. Main Facts: The "Neural Coprocessor" Breakthrough

At the center of this technological breakthrough is Marcelo Guibout, a developer who has developed a custom ReShade add-on named mgpu_bridge. The file, currently hosted on GitHub, acts as a bridge between two graphics cards installed in a single PC.

How the Mod Works

In a standard single-GPU system running DLSS 5, the graphics card must perform two heavy tasks sequentially:

1. Rasterization/Ray Tracing: Rendering the base game engine, geometry, lighting, and textures.
2. Neural Rendering (DLSS NR): Running a heavy neural network pass over the rendered frame to upscale, denoise, and visually enhance the image.

Because DLSS 5’s Neural Rendering is incredibly demanding, running both steps on a single GPU creates a massive bottleneck. Guibout’s mgpu_bridge changes this dynamic by splitting the labor across two GPUs:

• The Render GPU: The primary graphics card (such as an RTX 5080 or RTX 5060 Ti) focuses entirely on rendering the game at a lower base resolution.

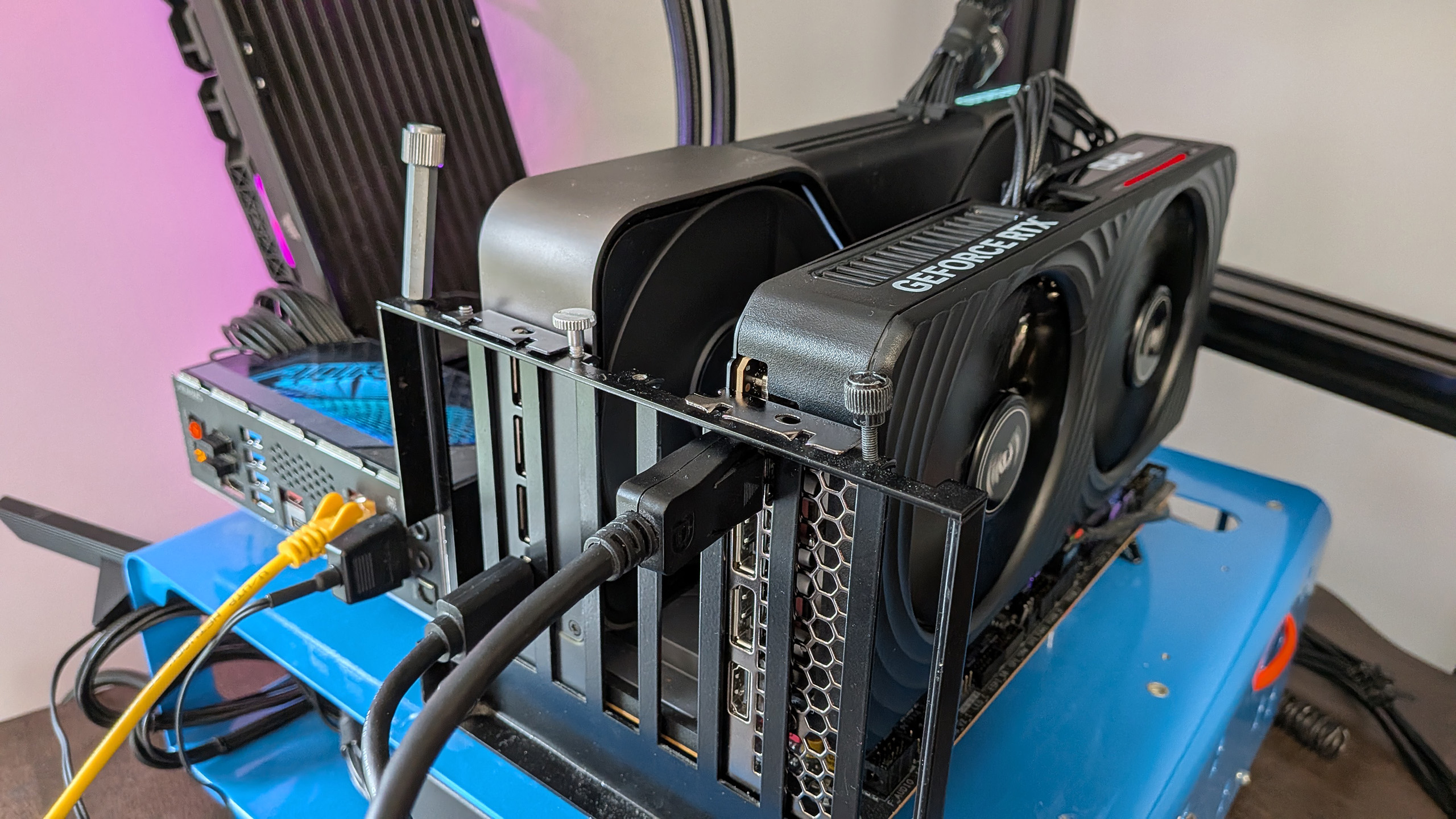

• The Coprocessor GPU: A secondary graphics card (tested using a second RTX 5060 Ti 16 GB) receives the finished frame, performs the intensive neural rendering pass, and outputs the final, AI-enhanced image directly to its own connected monitor.

[Render GPU] ---> Renders Base Game ---> Passes Frame (via mgpu_bridge)
                                                  |
                                                  v
[Coprocessor GPU] ---> Performs DLSS 5 NR ---> Outputs to Monitor 2

By keeping the final frame on the secondary GPU and displaying it directly from that card’s video outputs, the mod avoids the high latency and performance overhead of copying the processed frame back to the primary GPU.

AI-Assisted Development

The creation of mgpu_bridge is also a testament to modern software engineering workflows. Guibout utilized a local large language model (LLM)—specifically Qwen3.8-27B-Q6_K running via LM Studio on a dual RTX 5060 Ti 16 GB setup—to write the initial application scaffold.

Following this, Guibout leveraged Anthropic’s Claude to draft the majority of the core C++ code. While Guibout noted that the AI occasionally "produced several confident, well-formatted, wrong diagnoses along the way," the collaboration ultimately yielded a functional, highly innovative multi-GPU bridge.

2. Chronology of Development

The journey of DLSS 5 from a highly demanding developer showcase to a community-modded, multi-GPU experiment has progressed rapidly over the past year.

Phase 1: The GDC and GTC Showcases

The seeds for multi-GPU neural rendering were planted by NVIDIA itself. When NVIDIA CEO Jen-Hsun Huang first demonstrated DLSS 5 Neural Rendering during industry events around the Game Developers Conference (GDC) and Graphics Technology Conference (GTC), keen-eyed observers noticed that the demonstration systems were secretly utilizing dual graphics cards. This initial setup strongly implied that the computational complexity of real-time neural rendering was too heavy for a single consumer-grade GPU to handle efficiently.

Phase 2: Commercial Launch and the Single-GPU Bottleneck

Upon the public release of DLSS 5, NVIDIA adapted the technology to run on single-GPU configurations. However, this transition came at a steep cost. Gamers quickly realized that enabling Neural Rendering resulted in catastrophic performance drops. Rather than acting as a traditional upscaler that boosts performance, DLSS 5 behaved more like an ultra-heavy graphical preset, trading massive amounts of raw frame rate for unprecedented image clarity.

Phase 3: The Community Takes the Reins

Frustrated by the performance overhead but captivated by the visual fidelity of DLSS 5, the PC gaming community began experimenting. Because official implementations of DLSS 5 were limited to a select few titles, modders integrated the technology into ReShade, a popular post-processing injector. This allowed users to force DLSS 5 Neural Rendering onto virtually any PC game, albeit with severe performance penalties.

Phase 4: The Birth of mgpu_bridge

Recognizing that neural post-processing completely saturates whatever hardware it runs on, Marcelo Guibout began developing a multi-GPU offloading solution. By utilizing local and cloud-based AI models, Guibout quickly iterated on the C++ codebase, culminating in the public GitHub release of mgpu_bridge.

Following the release, hardware enthusiasts and journalists began attempting to replicate and expand upon the dual-GPU results, highlighting both the immense potential and the finicky, experimental nature of the current code.

3. Supporting Data: The Cost of Neural Rendering

To understand why a secondary GPU is necessary, one must look at the sheer computational tax that DLSS 5 Neural Rendering imposes on modern hardware.

The Saturation Problem

As Guibout noted in the project documentation:

"The reason it is worth doing: neural post-processing saturates whatever device it runs on. Run it on the render GPU and lowering your render resolution just frees capacity the neural stage immediately eats, so upscaling stops paying for itself. Move it to a second GPU and the render GPU is genuinely freed."

In a traditional single-GPU setup, lowering the internal rendering resolution (e.g., from 4K to 1080p) is supposed to increase performance. However, with DLSS 5 enabled, the primary GPU’s Tensor cores become so overwhelmed by the neural reconstruction process that any performance gained by lowering the resolution is instantly clawed back.

The Financial and Hardware Realities

While the performance gains of offloading are impressive, the financial barrier to entry is immense.

• The mod was developed and tested using two RTX 5060 Ti 16 GB cards.
• In the current market, these mid-range Blackwell-architecture cards cost approximately $800 USD each.
• This brings the total silicon cost of the setup to $1,600 USD—a price tag equivalent to a single ultra-high-end flagship GPU, but split across two lesser cards.

4. Hardware Limitations and Technical Challenges

While the technical achievement of mgpu_bridge is undeniable, it is accompanied by several severe caveats that prevent it from being a plug-and-play solution for the average gamer.

The Dual-Monitor Requirement

Perhaps the most significant limitation of the current ReShade implementation is the display output. The mod dictates that the secondary GPU must display the final image.

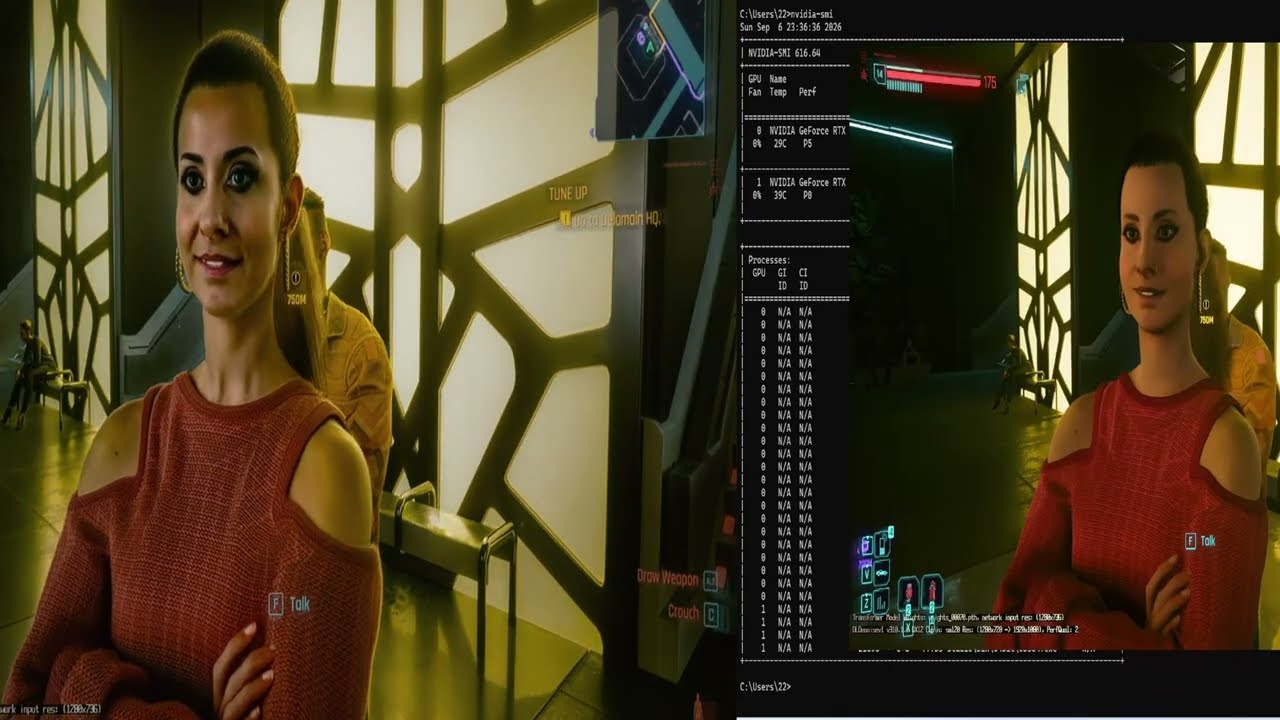

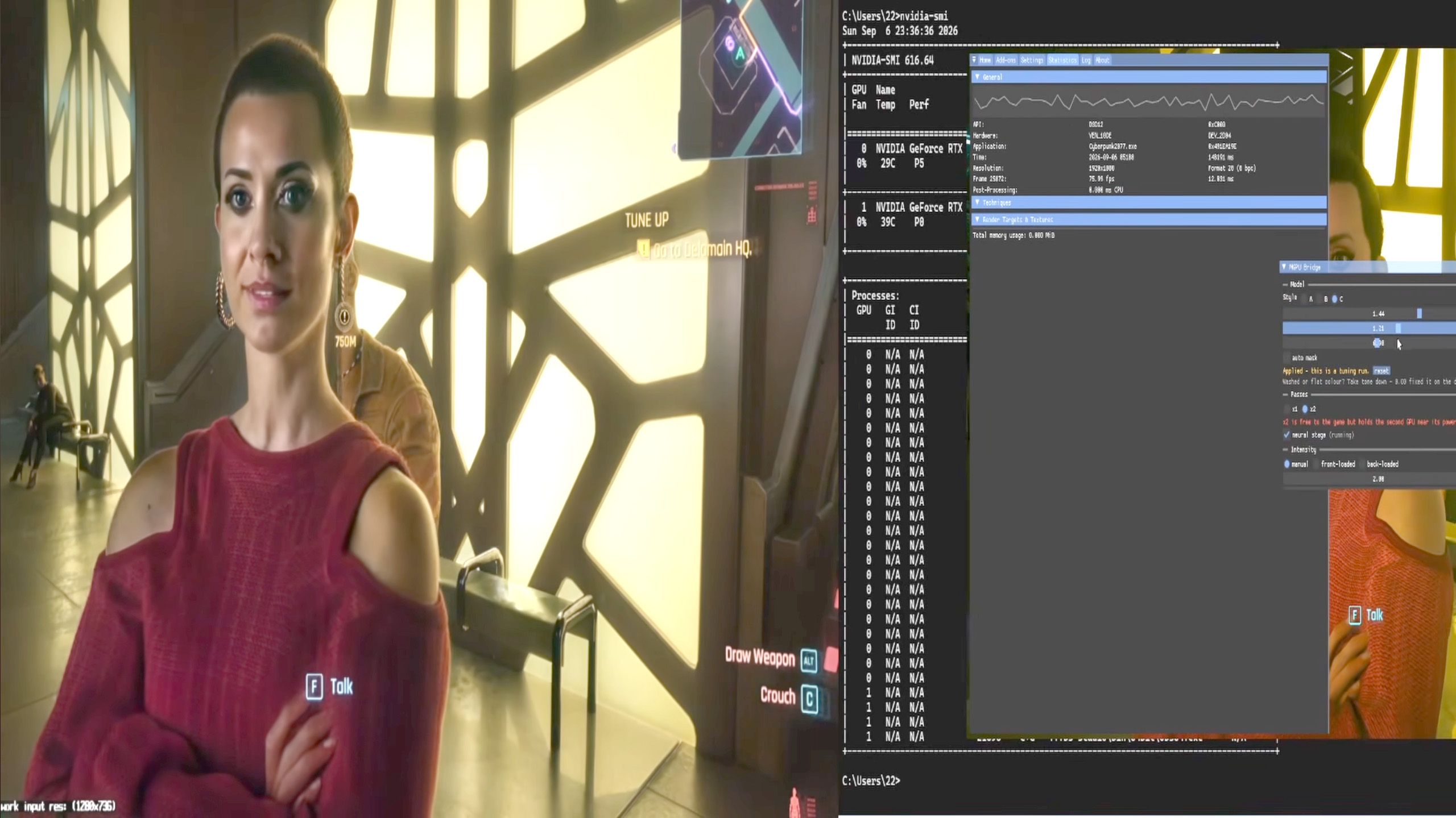

Because of this, a second monitor is a hard requirement. The primary monitor displays the raw, un-enhanced game render from the primary GPU, while the second monitor, plugged directly into the secondary GPU, displays the final DLSS 5-enhanced frame. Attempting to run the setup in a "headless" configuration (where the secondary GPU processes the frame and sends it back to the primary GPU to display on a single monitor) is technically possible but results in severe latency and a massive performance penalty, defeating the purpose of the mod.

Motherboard and PCIe Lane Constraints

In the heyday of SLI and CrossFire, motherboards frequently featured multiple physical PCIe x16 slots wired directly to the CPU. Today, the hardware landscape is entirely different:

1. Lane Bifurcation: Modern consumer CPUs have a limited number of PCIe lanes (typically 16 to 24 lanes).
2. M.2 NVMe Dominance: Fast NVMe solid-state drives eat up precious PCIe lanes. Installing multiple NVMe drives often forces the motherboard to split the primary PCIe x16 slot into two x8 slots, or drop the secondary slot down to PCIe x4 speeds.
3. Physical Space: Modern GPUs are massive, often occupying three to four slots. Fitting two of these behemoths onto a standard ATX motherboard is physically challenging and severely restricts airflow.

Modern PCIe Lane Bottleneck:
[CPU (24 Lanes)]
   ├── PCIe x16 Slot 1 ----> Primary GPU (Runs at x8 when slot 2 is populated)
   ├── PCIe x16 Slot 2 ----> Secondary GPU (Runs at x8)
   └── M.2 NVMe Slots -----> Direct Storage (Consumes remaining 8 lanes)

Asymmetric GPU Compatibility Issues

During testing of the mgpu_bridge mod, journalists attempted to run the system asymmetrically using an RTX 5080 as the primary rendering card and a single RTX 5060 Ti 16 GB as the neural coprocessor in Cyberpunk 2077.

Unfortunately, the mod failed to arm under this asymmetric configuration. This suggests that the current iteration of the code is highly sensitive to hardware configurations, requiring matched GPUs (such as dual RTX 5060 Ti cards) to function reliably.

5. Implications: The Future of Neural Coprocessing

The emergence of the mgpu_bridge mod raises profound questions about the future of PC gaming hardware, e-waste, and industry-standard rendering techniques.

Reusable Hardware and E-Waste Mitigation

Historically, upgrading a graphics card meant selling, gifting, or shelving the old model. If neural coprocessing becomes an industry standard, gamers could simply leave their old GPU in their system to handle AI upscaling, frame generation, and ray reconstruction, while the new GPU focuses entirely on raw rasterization. This could significantly extend the lifecycle of older GPUs and reduce electronic waste.

ReShade Post-Processing vs. Native Integration

It is important to note that a ReShade-based implementation is fundamentally limited. ReShade operates at the very end of the rendering pipeline (the post-processing stage). It lacks access to crucial engine-level data, such as:

• Motion Vectors: Temporal data tracking how pixels move from frame to frame.
• Depth Buffers: 3D spatial data mapping the distance of objects from the camera.

For DLSS 5 to reach its full potential on dual GPUs, the secondary card must be integrated directly into the game engine’s rendering pipeline, rather than relying on a post-render injector. This would require game developers and NVIDIA to officially support multi-GPU neural rendering.

Strategic Implications for NVIDIA

From a business perspective, officializing "neural coprocessors" would be a masterstroke for NVIDIA. By allowing or encouraging gamers to use two GeForce cards simultaneously, NVIDIA would:

1. Increase GPU Sales: Enthusiasts would have a compelling reason to purchase multiple cards or keep their older NVIDIA cards instead of switching to competitors.
2. Secure Ecosystem Lock-In: A dual-GPU ecosystem would make it incredibly difficult for gamers to migrate to AMD or Intel, as doing so would render their secondary "coprocessor" card useless.

While Marcelo Guibout’s mgpu_bridge is currently an experimental tool meant for researchers and hardcore enthusiasts, it has conclusively proven a vital concept: AI rendering has grown too large for a single GPU to handle. Whether through official driver updates or continued community modding, the era of the dedicated neural coprocessor has officially begun.
