The Dawn of the High-NA Era: TSMC Sets 2030 Roadmap for Next-Generation Lithography

For over a decade, the semiconductor industry has been locked in a high-stakes race toward the atomic limit. At the center of this battle is TSMC, the world’s most influential contract chip manufacturer. While competitors like Intel were early to champion the adoption of High-Numerical Aperture (High-NA) Extreme Ultraviolet (EUV) lithography, TSMC remained famously cautious. Relying on its own engineering ingenuity and iterative optimizations of "Low-NA" EUV systems, the Taiwanese giant effectively argued that the $400 million price tag for next-gen scanners was not yet a necessity for its roadmap.

That era of restraint has officially concluded. This week, TSMC confirmed its long-term commitment to High-NA EUV lithography, scheduling a move into high-volume manufacturing (HVM) by 2030. This shift marks a pivotal transition in the company’s manufacturing philosophy, signaling that the physical limits of current optical systems have finally met the demands of the AI and high-performance computing (HPC) revolution.

The Core Facts: A New Technological Horizon

The transition to High-NA EUV is not merely an equipment upgrade; it is a fundamental shift in how silicon wafers are patterned. Current Low-NA EUV systems, which have enabled nodes like N3 and N2, possess a numerical aperture of 0.33. High-NA systems, developed by ASML, boost this to 0.55.

This increased aperture allows for a dramatic improvement in single-exposure resolution—shrinking the process from 13nm down to 8nm. By enabling finer circuit features without the complexity and yield-killing risks of multi-patterning, High-NA EUV is expected to become the bedrock of the 1nm-class manufacturing nodes.

TSMC’s plan is deliberate and staged:

• 2030: The official debut of High-NA EUV in high-volume manufacturing using standard 6×6-inch photomasks.
• 2031: The launch of a specialized pilot line utilizing 6×12-inch photomasks.
• 2033: The transition to full-scale, advanced node production using the larger 6×12-inch mask format.

A Chronology of Lithographic Evolution

To understand the significance of this move, one must look at the path TSMC has walked to arrive at this decision.

The Low-NA Reign (2019–2029)

Since the introduction of EUV lithography, TSMC has squeezed unprecedented performance out of its 0.33 NA scanners. Through innovations in double-patterning and advanced materials, the company successfully scaled through the N7, N5, and N3 nodes. Even the upcoming N2 and A16 nodes, slated for the mid-2020s, rely on refinements of these existing technologies. By maximizing the utility of the "standard" EUV toolset, TSMC maintained a competitive advantage, avoiding the immense overhead costs associated with the new generation of scanners.

The Turning Point (2025–2029)

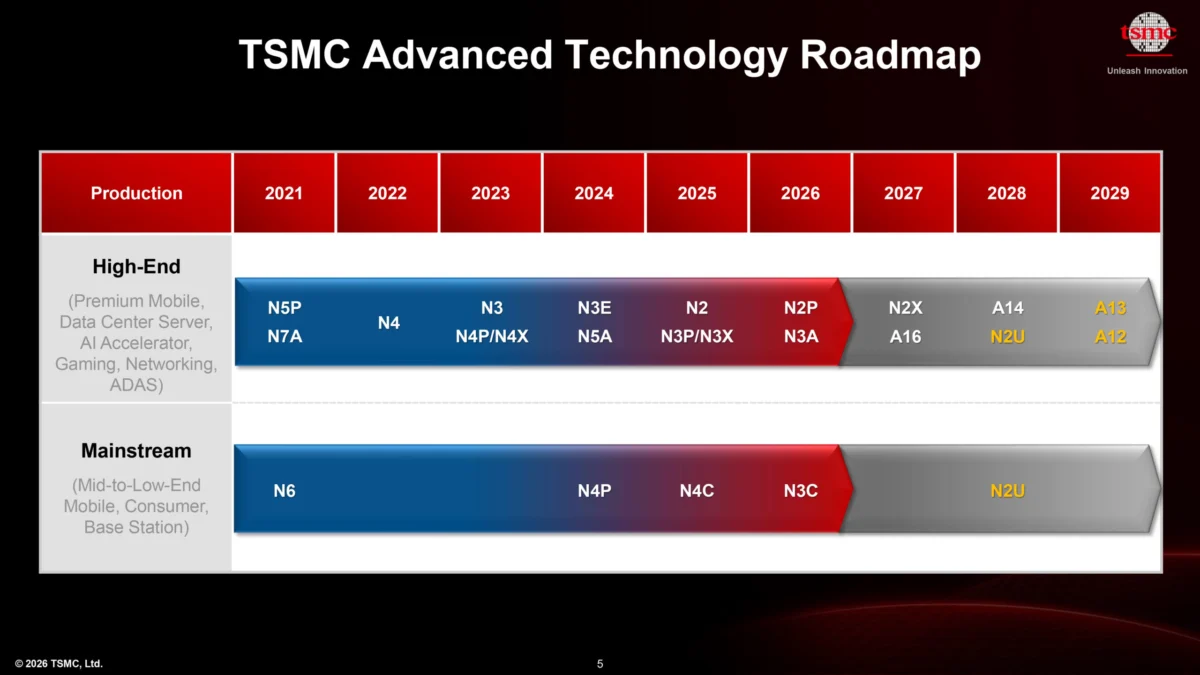

The period between 2027 and 2029 represents the "bridge" to the future. With the introduction of A16 in 2027 and the subsequent A12/A13 nodes in 2029, TSMC has publicly stated these will remain under the banner of conventional EUV. This indicates that TSMC’s R&D team believes they can still achieve density and power-efficiency gains through architecture—such as the transition to gate-all-around (GAA) nanosheets and back-side power delivery—without needing the raw optical power of High-NA.

The High-NA Deployment (2030 and Beyond)

By 2030, the density requirements for next-generation AI accelerators and specialized HPC silicon will likely reach a point where conventional EUV becomes prohibitively inefficient. The move to High-NA in 2030 is designed to coincide with what is anticipated to be the "A11" or "A10" node (1.1nm to 1nm class), where single-exposure accuracy becomes paramount for keeping power leakage under control.

The Photomask Challenge: 6×6 vs. 6×12

One of the most complex engineering hurdles in this transition is the "exposure field" constraint. Because High-NA systems have a different lens architecture, their usable exposure field—the amount of the chip they can "print" in a single pass—is halved compared to Low-NA systems.

For modern AI chips, which are already nearing the physical limits of reticle sizes, this is a major problem. If a chip is too large to fit in a single High-NA exposure field, designers are forced to "stitch" the design together from multiple exposures, which increases the risk of defects and slows down production.

TSMC is addressing this by spearheading the industry transition to 6×12-inch photomasks. This is an industry-wide undertaking. It requires a complete overhaul of the ecosystem:

1. EDA Software: Design tools must be rewritten to handle the larger, non-standard mask sizes.
2. Mask Writing Tools: The systems that create the photomasks must be entirely redesigned to handle the larger format.
3. Handling Systems: The robotic logistics within the fab must be physically altered to accommodate the new mask cassettes.

ASML is working closely with TSMC, Intel, and Samsung to standardize this transition, as the cost of shifting the entire global supply chain to 12-inch masks is astronomical.

Official Industry Perspectives

ASML, the sole provider of these machines, has been an advocate for this shift. Christophe Fouquet, President and CEO of ASML, noted the collaborative nature of the initiative:

"We expect the adoption of High-NA EUV to increase progressively along the device scaling roadmap, first using current 6-inch masks and then further supported by 12-inch masks, which enable greater scanner productivity and allow the industry to meet the demand for smaller, faster and more energy-efficient chips. We are pleased by the strong initial support of semiconductor manufacturers, mask suppliers and partners for this initiative."

For ASML, TSMC’s buy-in is the final piece of the puzzle. With the three largest logic manufacturers—TSMC, Intel, and Samsung—now aligned on the roadmap, the transition to 12-inch masks has the industrial inertia required to succeed.

Implications for the Future of Computing

The pivot to High-NA EUV carries significant implications for the landscape of the semiconductor industry.

Transistor Architecture Evolution

The adoption of High-NA will almost certainly be paired with the maturation of third-generation nanosheet architectures and potentially Complementary Field-Effect Transistors (CFETs). As TSMC moves into the sub-1nm regime, the ability to define features with 8nm resolution will be critical to managing the physical spacing of these complex transistor stacks.

The Cost of Performance

The economic implications are unavoidable. High-NA scanners are significantly more expensive than their predecessors, and the infrastructure costs to support 12-inch masks are substantial. TSMC’s decision to wait until 2030 suggests they are betting on a "sweet spot" where the cost-per-transistor benefit of High-NA finally outweighs the capital expenditure. Customers who demand the highest-performance AI silicon will likely see this reflected in the pricing of future wafers.

A Continued Duopoly of Innovation

While the competition between Intel and TSMC has been intense, the standardization of the 12-inch mask format shows a rare moment of industry cooperation. By aligning on these tools, the major players are ensuring that the global semiconductor supply chain does not fracture into incompatible regional standards.

Conclusion: The Long Road to 1nm

TSMC’s entry into the High-NA era marks the end of an era of skepticism and the beginning of a new chapter of high-precision manufacturing. By setting a definitive date of 2030, the company has provided a clear signal to its partners, competitors, and clients: the future of Moore’s Law is no longer just about clever design—it is about the marriage of advanced lithographic optics and massive-scale infrastructure.

As we look toward the 2030s, the battle for the sub-1nm node will be defined by who can most efficiently master the 0.55 NA systems. TSMC, with its methodical approach and massive scale, has ensured that it will remain at the forefront of this final, most difficult frontier of the silicon age. Whether it is called A11, A10, or something else entirely, the chips of 2030 will be the result of a decade of preparation, billions in R&D, and the most sophisticated machinery humanity has ever built.
